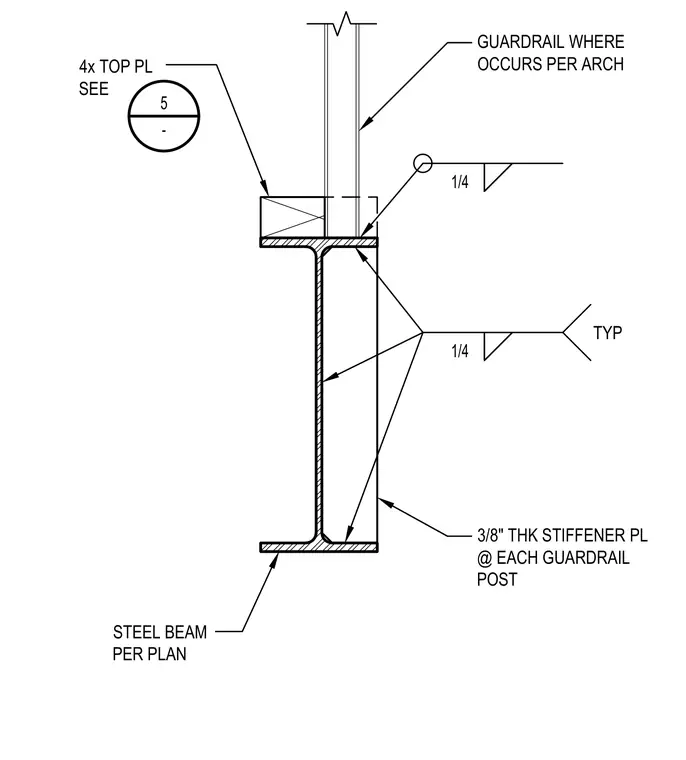

A guardrail post connects to a structural steel beam sized per plan with a top plate and 3/8-inch thick stiffener plates welded at each post location. Fillet welds of 1/4-inch size secure the connection between the post assembly and the beam top flange.
STEEL BEAM PER PLAN GUARDRAIL WHERE OCCURS PER ARCH 1/4 1/4 TYP 3/8" THK STIFFENER PL @ EACH GUARDRAIL POST 4x TOP PL SEE 5 -
