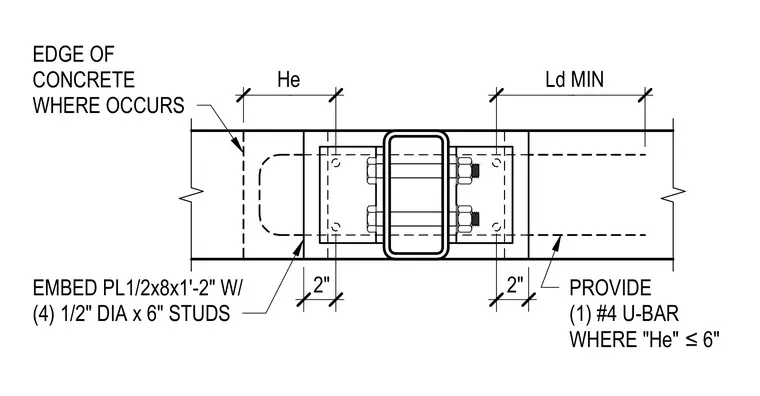

An embed plate measuring one-half inch by eight inches by one foot two inches is cast into a concrete member with four one-half inch diameter by six-inch stud anchors. Where the edge distance He is six inches or less, a number four U-bar is provided.
2" 2" 5 3/4" 9 1/4" He Ld MIN EMBED PL1/2x8x1'-2" W/ (4) 1/2" DIA x 6" STUDS EDGE OF CONCRETE WHERE OCCURS PROVIDE (1) #4 U-BAR WHERE "He" ≤ 6"
