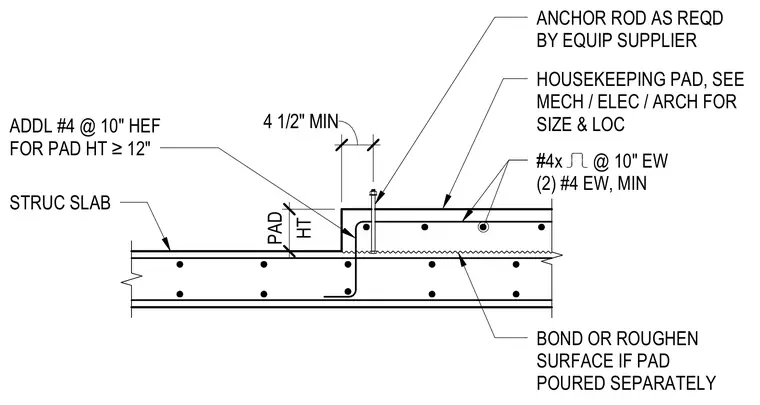

A concrete housekeeping pad sits atop a structural slab with a minimum height and anchor rod placement sized per the mechanical, electrical, or architectural requirements. The structural slab surface is bonded or roughened when the pad is poured separately. Reinforcing steel consists of number four bars spaced at ten inches each way, with two number four bars minimum, and additional number four bars for pads twelve inches in height or greater. Anchor rods are provided as required by the equipment supplier.
4 1/2" MIN BOND OR ROUGHEN SURFACE IF PAD POURED SEPARATELY #4x @ 10" EW (2) #4 EW, MIN HOUSEKEEPING PAD, SEE MECH / ELEC / ARCH FOR SIZE & LOC ANCHOR ROD AS REQD BY EQUIP SUPPLIER STRUC SLAB 6" PAD HT # ADDL #4 @ 10" HEF FOR PAD HT ≥12"
