Structural · S-CKVC3

Typical Skin Brace Connection to Slab

Materials

Concrete Steel Metal (misc.)

Elements

Walls Ceilings Floors / Slabs Decks Arches Bracing Anchors / Embeds Connections / Plates

Connections

Braced Frame Connection Bracing Connection Bolted Connection Embed Plate

About this detail

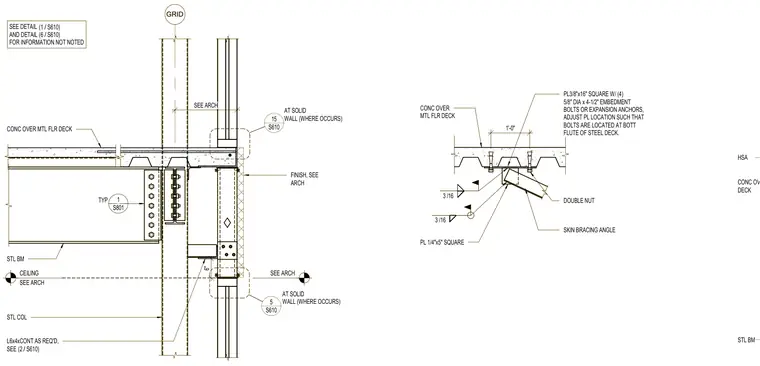

A structural skin bracing angle connects to a concrete slab over a metal floor deck and steel beam framing system. The assembly utilizes a 3/8-inch by 16-inch square plate secured with four 5/8-inch diameter by 4-1/2-inch embedment bolts or expansion anchors, adjusted so the bolts locate at the bottom flute of the steel deck. A 1/4-inch by 5-inch square plate and a skin bracing angle are welded together with 3/16-inch fillet welds, with double nuts securing the threaded connections. Continuous angles and steel columns coordinate with adjacent architectural elements.
