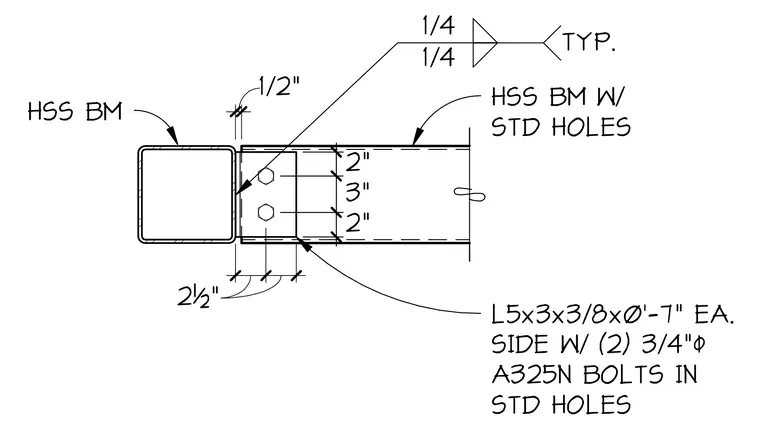

An HSS beam with standard holes frames into an HSS column using double angles. The 5x3x3/8-inch angles are seven inches long and welded to each side of the beam with typical quarter-inch fillet welds. Two three-quarter-inch A325-N high-strength bolts in standard holes connect the angles to the column face, with a half-inch setback from the column.
1/2" 2½" 2½" 2" 3" 2" 1/4 1/4 TYP. HSS BM HSS BM W/ STD HOLES L5x3x3/8x0'-7" EA. SIDE W/ (2) 3/4" A325N BOLTS IN STD HOLES
