A 310UC137 upper column section splices to a 350WC230 or 350WC258 lower column section using sixteen M30 bolts through a twenty millimeter cover steel plate. Sixteen millimeter end plates prepared for full contact secure to the columns with four M30 bolts and ten millimeter flat washers. A custom-fit steel packer with flat washers is welded to the column, specifying a ten millimeter fillet weld when the packer exceeds ten millimeters or matching the packer thickness when thinner than ten millimeters.

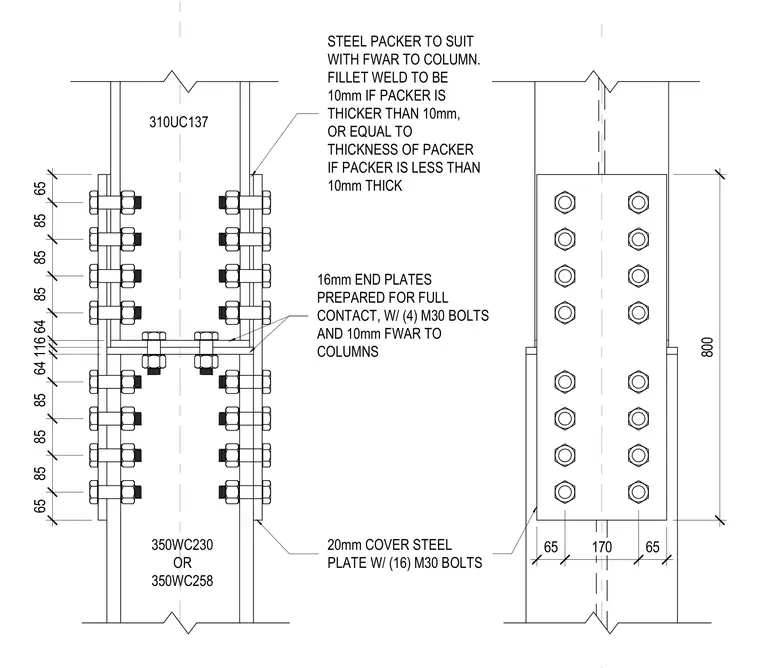

310UC137 350WC230 OR 350WC258 STEEL PACKER TO SUIT WITH FWAR TO COLUMN. FILLET WELD TO BE 10mm IF PACKER IS THICKER THAN 10mm, OR EQUAL TO THICKNESS OF PACKER IF PACKER IS LESS THAN 10mm THICK 20mm COVER STEEL PLATE W/ (16) M30 BOLTS 16mm END PLATES PREPARED FOR FULL CONTACT, W/ (4) M30 BOLTS AND 10mm FWAR TO COLUMNS 65 170 65 65 85 85 85 64 1616 64 85 85 85 65 800
