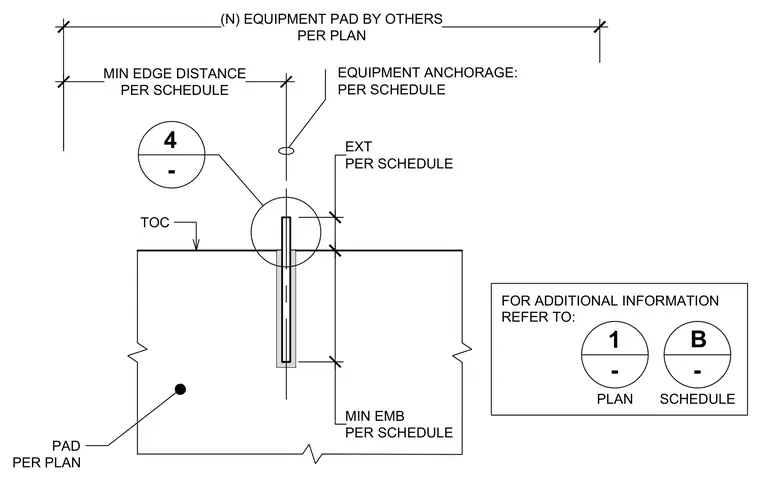

An equipment anchor is embedded into a new concrete pad per structural schedule. Minimum embedment depth, edge distance, and extension dimensions are maintained per schedule requirements. Additional information refers to the structural plan and schedule.
MIN EDGE DISTANCE PER SCHEDULE EXT PER SCHEDULE MIN EMB PER SCHEDULE TOC (N) EQUIPMENT PAD BY OTHERS PER PLAN EQUIPMENT ANCHORAGE: PER SCHEDULE FOR ADDITIONAL INFORMATION REFER TO: PAD PER PLAN 4 - 1 - B - PLAN SCHEDULE
