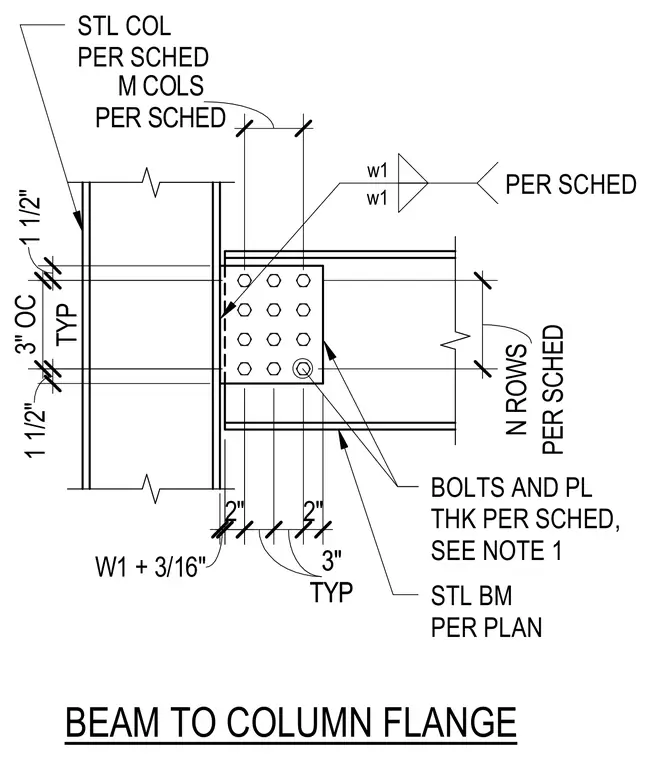

A structural steel beam frames into the flange of a steel column using a single-plate shear connection. The plate is welded to the column flange with fillet welds sized per schedule, and secured to the beam web with multiple rows of bolts spaced at three inches on center. Bolt diameters, plate thicknesses, and member sizes are specified per schedule and plan, with edge distances dimensioned at one and a half and two inches typically.
W1 + 3/16" BEAM TO COLUMN FLANGE 1 1/2" TYP 3" OC 1 1/2" TYP 3" TYP 3" 2" 2" STL BM PER PLAN PER SCHED M COLS PER SCHED w1 w1 PER SCHED N ROWS STL COL PER SCHED BOLTS AND PL THK PER SCHED, SEE NOTE 1
