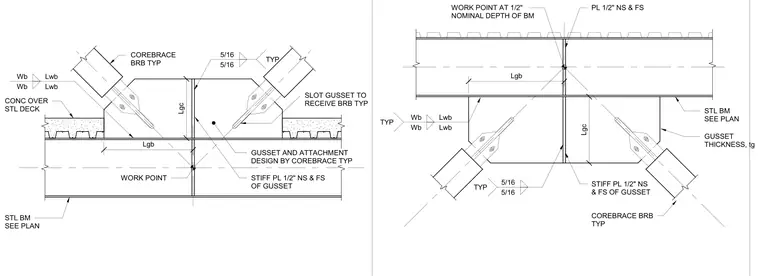

A CoreBrace buckling-restrained brace connects to a steel beam supporting a concrete over steel deck floor assembly using a welded gusset plate. Half-inch thick stiffener plates are welded to the near side and far side of the gusset plate with five-sixteenth inch fillet welds. The gusset plate is slotted to receive the buckling-restrained brace, with the gusset and attachment design provided by CoreBrace. A one-half inch plate is provided on the near side and far side at the work point located at the nominal depth of the beam.
Wb Lwb Wb Lwb TYP GUSSET THICKNESS, tg 5/16 5/16 TYP STIFF PL 1/2" NS & FS OF GUSSET COREBRACE BRB TYP STL BM SEE PLAN WORK POINT AT 1/2" NOMINAL DEPTH OF BM Lgb Lgc PL 1/2" NS & FS WORK POINT COREBRACE BRB TYP 5/16 5/16 TYP GUSSET AND ATTACHMENT DESIGN BY COREBRACE TYP SLOT GUSSET TO RECEIVE BRB TYP CONC OVER STL DECK STL BM SEE PLAN STIFF PL 1/2" NS & FS OF GUSSET Wb Lwb Wb Lwb Lgb Lgc
