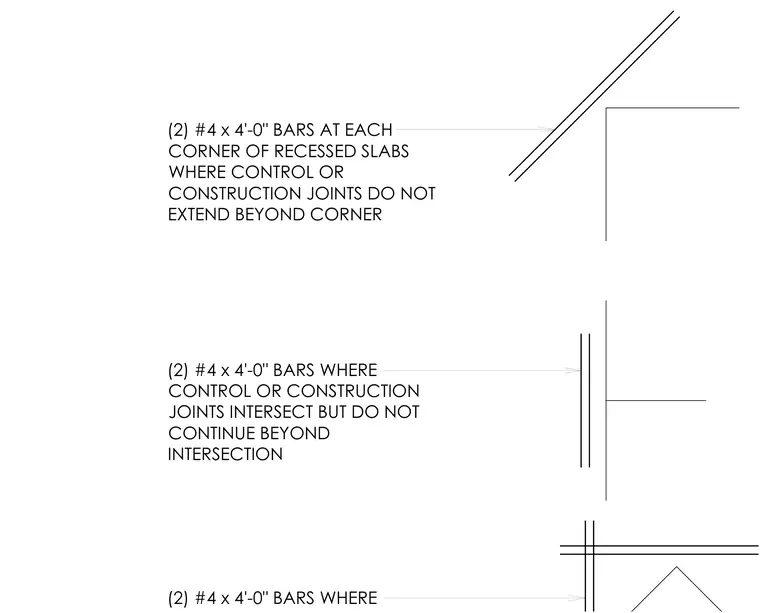

Two number four by four foot reinforcing bars are placed diagonally at each corner of recessed slabs where control or construction joints do not extend beyond the corner. Two number four by four foot bars are also installed where control or construction joints intersect without continuing past the intersection.
(2) #4 x 4'-0" BARS AT EACH CORNER OF RECESSED SLABS WHERE CONTROL OR CONSTRUCTION JOINTS DO NOT EXTEND BEYOND CORNER (2) #4 x 4'-0" BARS WHERE CONTROL OR CONSTRUCTION JOINTS INTERSECT BUT DO NOT CONTINUE BEYOND INTERSECTION (2) #4 x 4'-0" BARS WHERE
