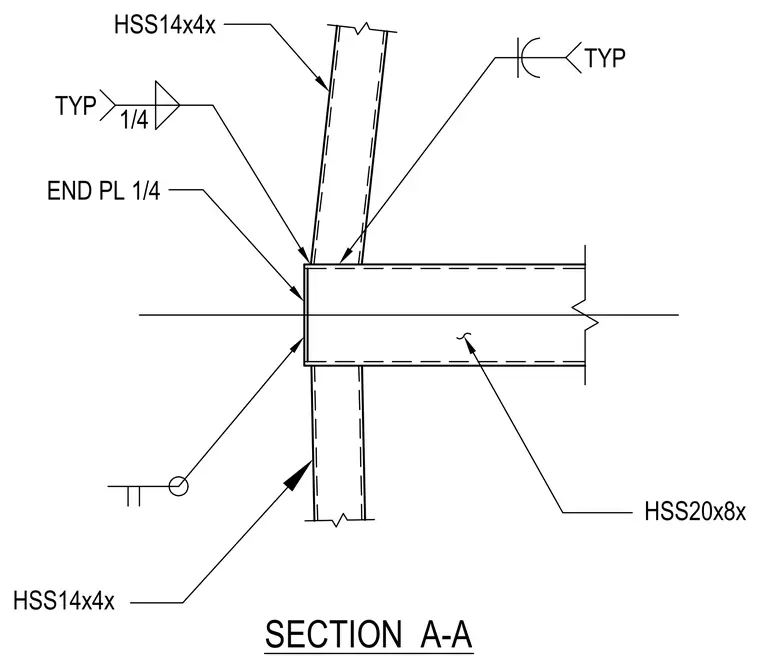

A welded tee connection joins a horizontal hollow structural section member to a continuous vertical hollow structural section column. The horizontal member is an HSS20x8 hollow structural section framed perpendicularly into the face of an HSS14x4 hollow structural section column. A one-quarter-inch thick end plate caps the end of the horizontal member and is secured with typical one-quarter-inch fillet welds around the perimeter. Additional weld symbols indicate standard shop or field welding connecting the members together typically.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and open any detail in the built-in CAD editor to edit and export DXF or DWG.
