Glulam Column and Mass Timber Lateral Tie Connection

Materials

Steel Timber / Wood

Elements

Decks Reinforcing

Connections

Bolted Connection Rebar Splice / Development Timber / Mass-Timber Connection

About this detail

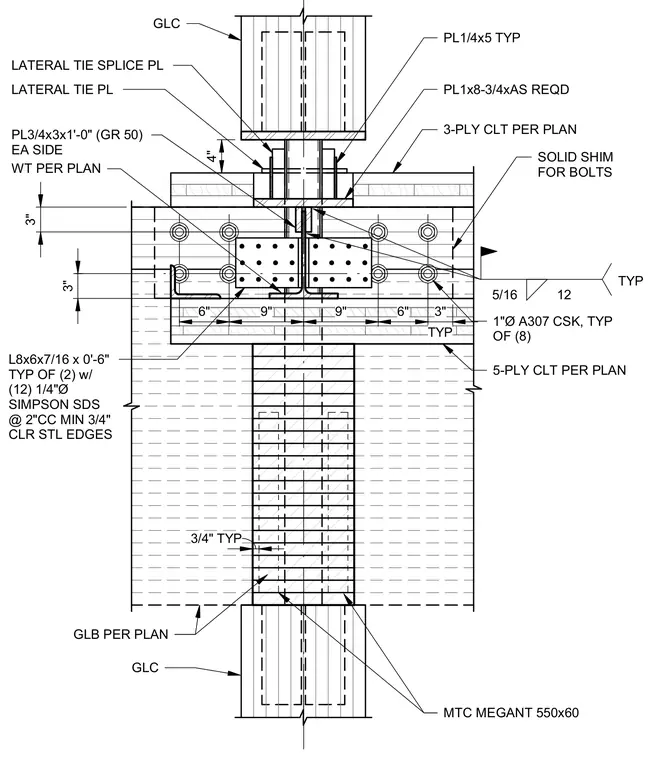

Glulam columns, cross-laminated timber floor panels, and a lateral tie assembly connect using a 3-ply and 5-ply CLT floor system anchored over a glulam beam and column, tied together with a structural tee profile, lateral tie splice plates, and Grade 50 steel plates on each side. Fasteners include one-inch diameter A307 countersunk bolts with solid shims, alongside structural wood screws fastening angles into the wood members. Concealed connector plates such as the MTC Megant 550x60 integrate into the timber elements per plan.
