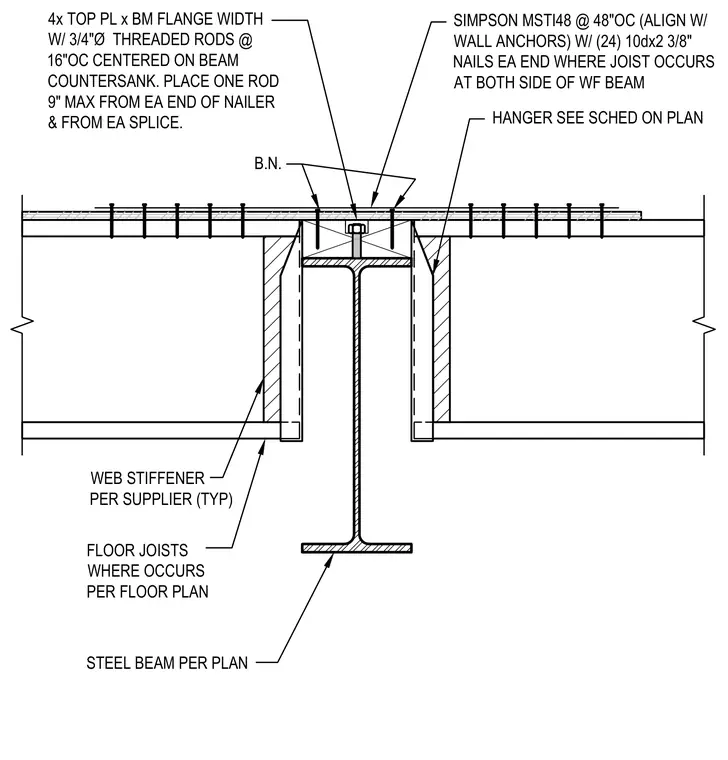

Floor joists bear on either side of a wide-flange steel beam utilizing web stiffeners per the supplier and joist hangers sized per plan. A four-inch top plate nailer matches the beam flange width and is secured with three-quarter-inch diameter threaded rods at sixteen inches on center, countersunk and placed nine inches maximum from each end of the nailer and splice. Simpson MSTI48 strap ties at forty-eight inches on center align with wall anchors and fasten with twenty-four ten-penny by two-and-three-eighth-inch nails at each end where joists occur on both sides of the wide-flange beam.
FLOOR JOISTS WHERE OCCURS PER FLOOR PLAN STEEL BEAM PER PLAN SIMPSON MSTI48 @ 48"OC (ALIGN W/ WALL ANCHORS) W/ (24) 10dx2 3/8" NAILS EA END WHERE JOIST OCCURS AT BOTH SIDE OF WF BEAM HANGER SEE SCHED ON PLAN WEB STIFFENER PER SUPPLIER (TYP) 4x TOP PL x BM FLANGE WIDTH W/ 3/4"Ø THREADED RODS @ 16"OC CENTERED ON BEAM COUNTERSANK. PLACE ONE ROD 9" MAX FROM EA END OF NAILER & FROM EA SPLICE. B.N.
