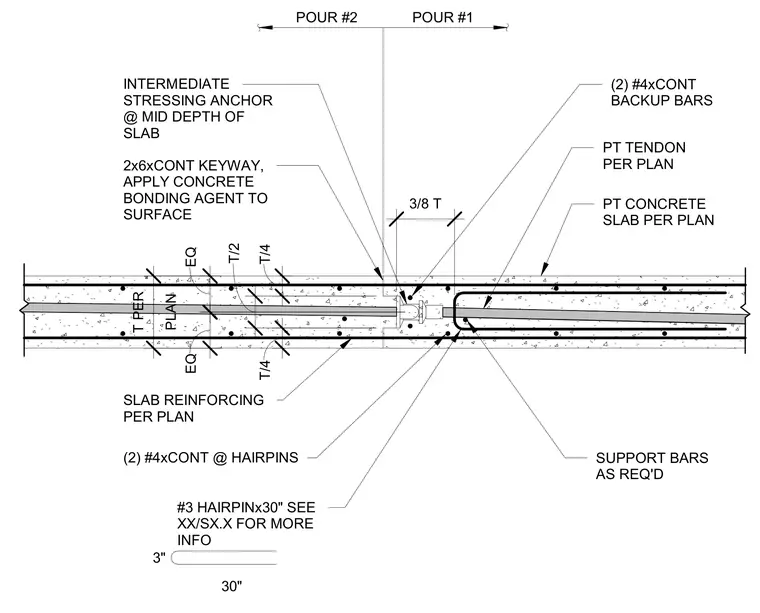

A post-tensioned concrete slab construction joint separates Pour Number 1 and Pour Number 2. A continuous two-by-six keyway is formed along the joint face, with concrete bonding agent applied to the hardened surface before the second pour. An intermediate stressing anchor is positioned at the mid-depth of the slab to terminate and stress the post-tensioned tendons. Reinforcement across the joint includes two continuous number four backup bars, paired number four hairpins, and thirty-inch long number three hairpins supported by bars as required, supplementing the slab reinforcing specified per plan.
INTERMEDIATE STRESSING ANCHOR @ MID DEPTH OF SLAB 2x6xCONT KEYWAY, APPLY CONCRETE BONDING AGENT TO SURFACE POUR #2 POUR #1 SLAB REINFORCING PER PLAN (2) #4xCONT @ HAIRPINS #3 HAIRPINx30" SEE XX/SX.X FOR MORE INFO 3" 30" (2) #4xCONT BACKUP BARS PT TENDON PER PLAN PT CONCRETE SLAB PER PLAN SUPPORT BARS AS REQ'D T/2 3/8 T EQ EQ T/4 T/4 PLAN T PER
