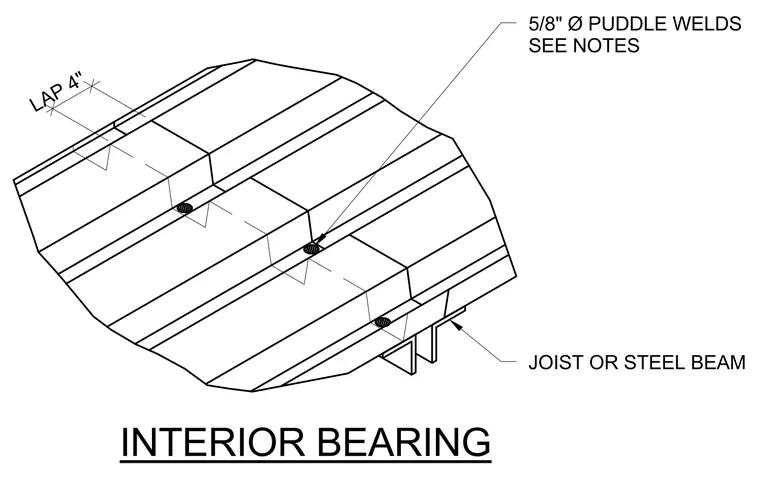

Metal decking bears across an interior joist or steel beam with a four-inch lap joint specified between panels. The deck is secured to the underlying structural support using five-eighth-inch diameter puddle welds placed in accordance with structural notes.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
