Insulated Metal Panel and Louver Backing Detail at Slab

Materials

Steel Metal (misc.)

Elements

Columns Beams Facades / Cladding Floors / Slabs Arches Anchors / Embeds Connections / Plates

Connections

Embed Plate

About this detail

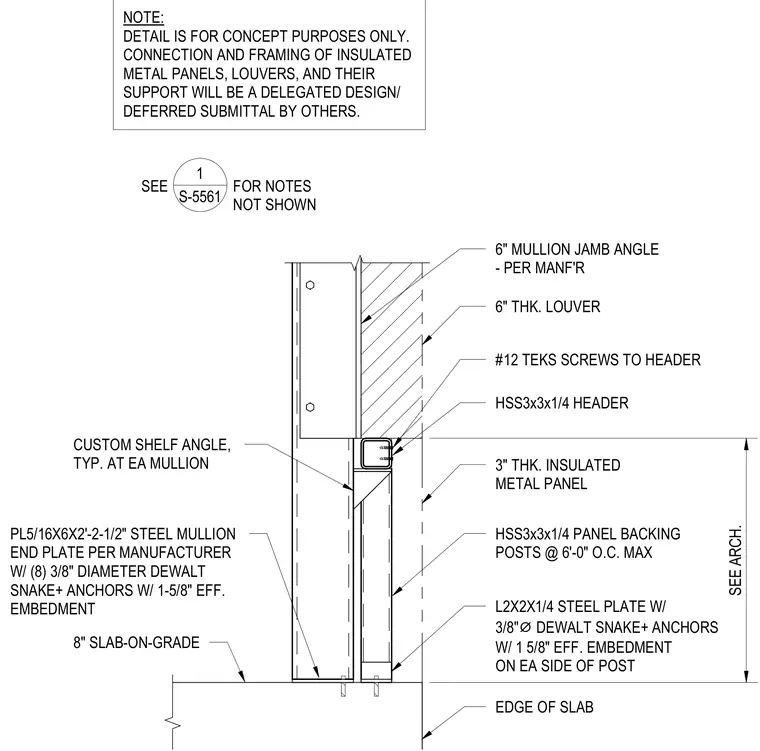

Vertical hollow structural section posts, sized as HSS 3x3x1/4 at six feet on center maximum, anchor to the slab edge using an L2x2x1/4 steel plate secured with 3/8-inch diameter DeWalt Snake+ anchors possessing 1-5/8-inch effective embedment on each side of the post. An HSS 3x3x1/4 header spans the assembly, receiving a custom shelf angle at each mullion and securing the 3-inch thick insulated metal panels with number 12 Teks screws. A 5/16-inch thick by 6-inch wide by 2-feet 2-1/2-inch long steel mullion end plate fastens to the base with eight 3/8-inch diameter DeWalt Snake+ anchors at 1-5/8-inch effective embedment, supporting a 6-inch mullion jamb angle and a 6-inch thick louver per the manufacturer.
