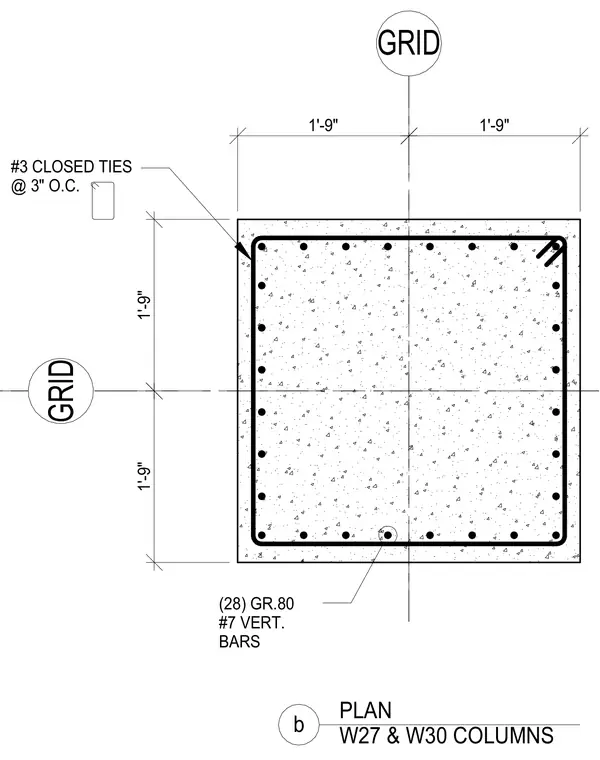

This structural detail shows a reinforced concrete column plan section with twenty-eight Grade 80 number 7 vertical reinforcing bars. The column is confined by number 3 closed ties spaced at 3 inches on center.
b PLAN W27 & W30 COLUMNS 1'-9" 1'-9" 1'-9" 1'-9" GRID GRID (28) GR.80 #7 VERT. BARS #3 CLOSED TIES @ 3" O.C.
