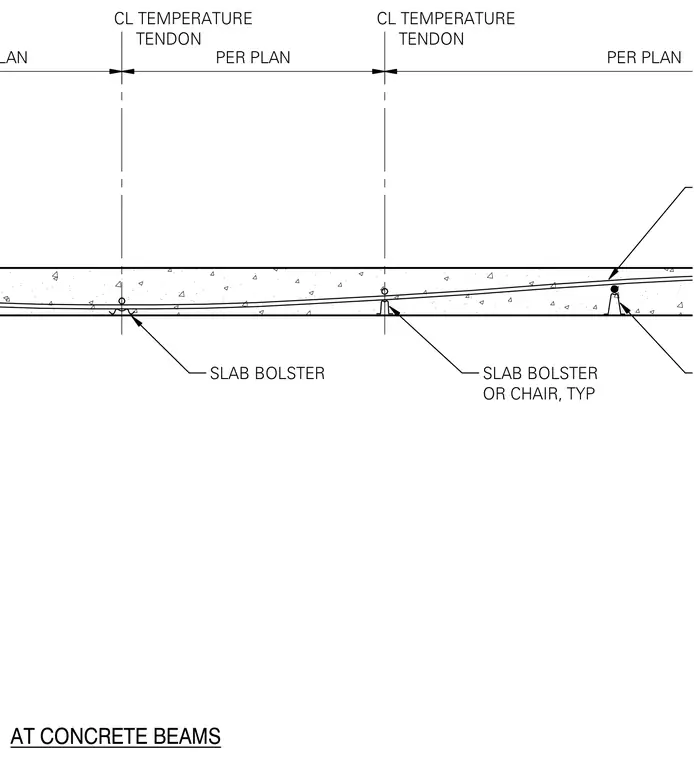

Post-tensioning tendons and temperature tendons run continuously through the concrete slab at spacings and locations sized per plan. The tendons are supported vertically by typical slab bolsters or chairs placed beneath the reinforcement. Centerlines for temperature tendons are dimensioned per plan across the beam spans.
PER PLAN PER PLAN PER PLAN CL TEMPERATURE TENDON CL TEMPERATURE TENDON AT CONCRETE BEAMS SLAB BOLSTER SLAB BOLSTER OR CHAIR, TYP
