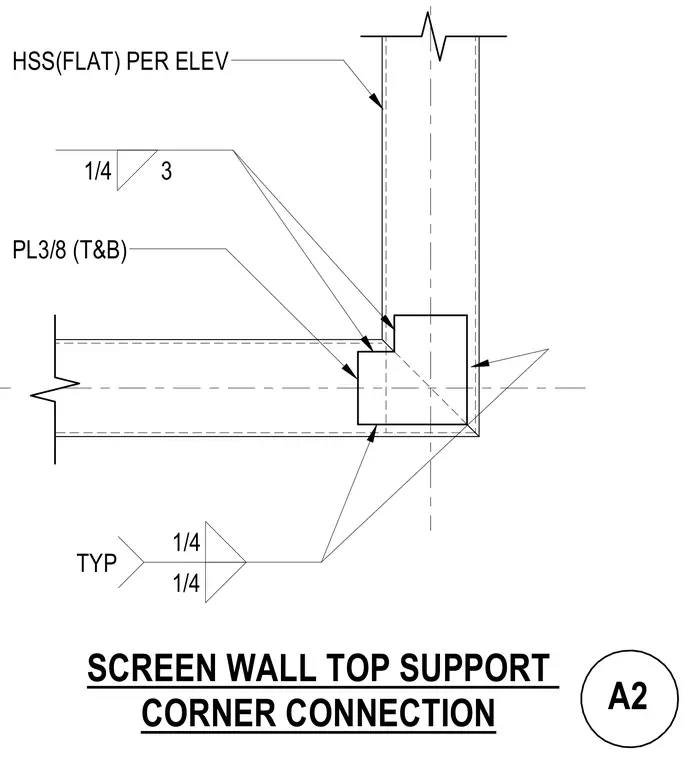

A corner connection for a screen wall utilizes hollow structural section (HSS) members sized per the elevation. The framing members are joined with three-eighths-inch thick plates located at the top and bottom. Welds are specified as one-quarter-inch fillets typical throughout the connection assembly.
1/4 3 PL3/8 (T&B) 1/4 1/4 TYP SCREEN WALL TOP SUPPORT CORNER CONNECTION A2 HSS(FLAT) PER ELEV
