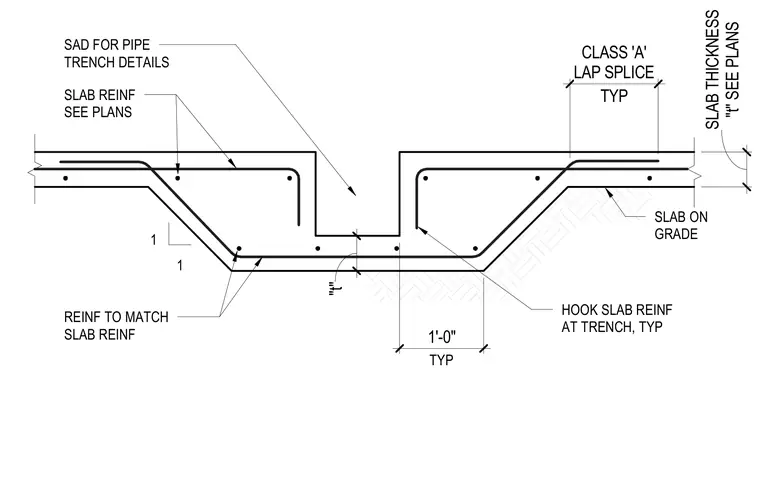

A formed pipe trench is recessed into a concrete slab on grade. The slab reinforcement is hooked at the trench edges and continued along the trench profile with matching reinforcement sizes. A typical class A lap splice is provided in the main slab reinforcement away from the depressed trench zone. Slab thickness and specific reinforcing bar sizes are specified per the structural plans.
TYP 1 1 SAD FOR PIPE TRENCH DETAILS SLAB REINF SEE PLANS HOOK SLAB REINF AT TRENCH, TYP SLAB ON GRADE REINF TO MATCH SLAB REINF "t" SEE PLANS SLAB THICKNESS TYP CLASS 'A' LAP SPLICE 1'-0" "t"
