Structural · S-CGVEH

Roof Edge Detail at Steel Joist and Exterior Wall

Materials

Steel Cold-formed Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Beams Walls Windows Facades / Cladding Roofs Decks Arches Bracing

Connections

HSS Connection Bracing Connection

About this detail

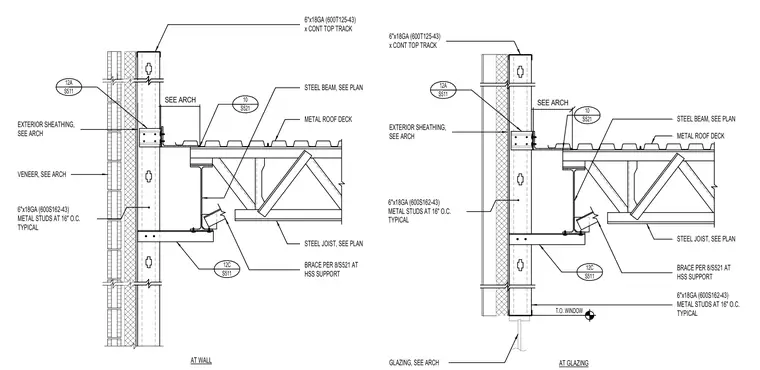

Roof edge condition bearing against an exterior cold-formed metal framing wall, configured in two variations at the wall and glazing. A steel joist bears on a structural steel beam, with a hollow structural section support brace configured per detail 8/S521. The exterior wall framing consists of 6-inch 18-gauge metal studs (600S162-43) spaced at 16 inches on center, capped with a continuous 6-inch top track (600T125-43). Exterior sheathing, veneer, and window head conditions are coordinated with architectural drawings. Connection details reference sheets 12A/S511, 10/S521, and 12C/S511 for specific attachment requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
