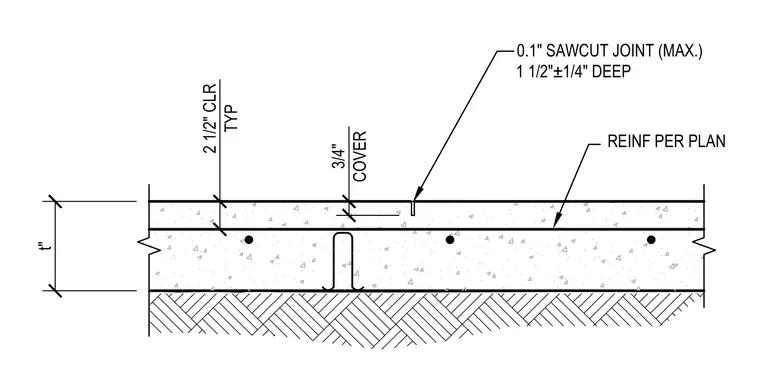

A sawn contraction joint is formed in a concrete slab with a maximum width of 0.1 inches and a depth of 1-1/2 inches plus or minus 1/4 inch. Reinforcement is placed per plan with a typical 2-1/2 inch clearance and a 3/4 inch cover over subgrade.
0.1" SAWCUT JOINT (MAX.) 1 1/2"±1/4" DEEP t" 2 1/2" CLR TYP REINF PER PLAN 3/4" COVER
