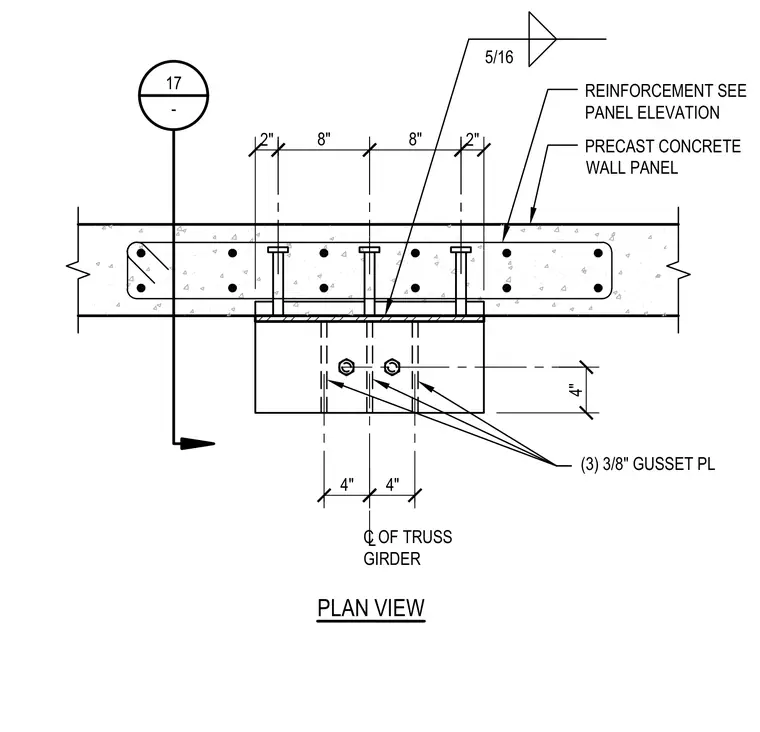

A truss girder frames into a precast concrete wall panel utilizing three three-eighths-inch gusset plates welded with a five-sixteenth-inch fillet weld. The wall panel features internal reinforcing sized per the panel elevation. Dimensions space the gusset plates symmetrically across the centerline of the truss girder.
2" 2" PLAN VIEW (3) 3/8" GUSSET PL 4" C OF TRUSS GIRDER L 4" 8" 8" 17 - 5/16 PRECAST CONCRETE WALL PANEL REINFORCEMENT SEE PANEL ELEVATION 4"
