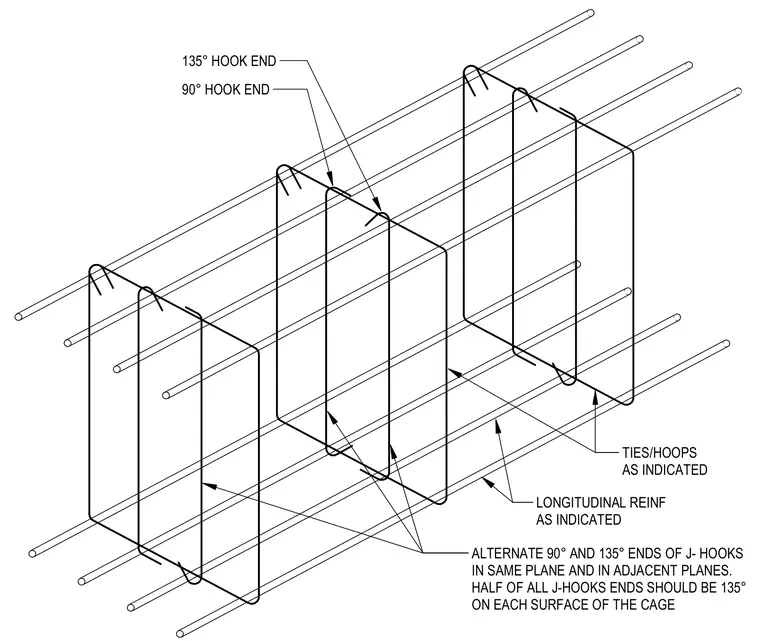

Longitudinal reinforcing bars are enclosed by ties and hoops as indicated, with J-hooks featuring alternating 90-degree and 135-degree ends in the same plane and in adjacent planes. Half of all J-hook ends are positioned at 135 degrees on each surface of the rebar cage.
TIES/HOOPS AS INDICATED LONGITUDINAL REINF AS INDICATED ALTERNATE 90° AND 135° ENDS OF J- HOOKS IN SAME PLANE AND IN ADJACENT PLANES. HALF OF ALL J-HOOKS ENDS SHOULD BE 135° ON EACH SURFACE OF THE CAGE 135° HOOK END 90° HOOK END
