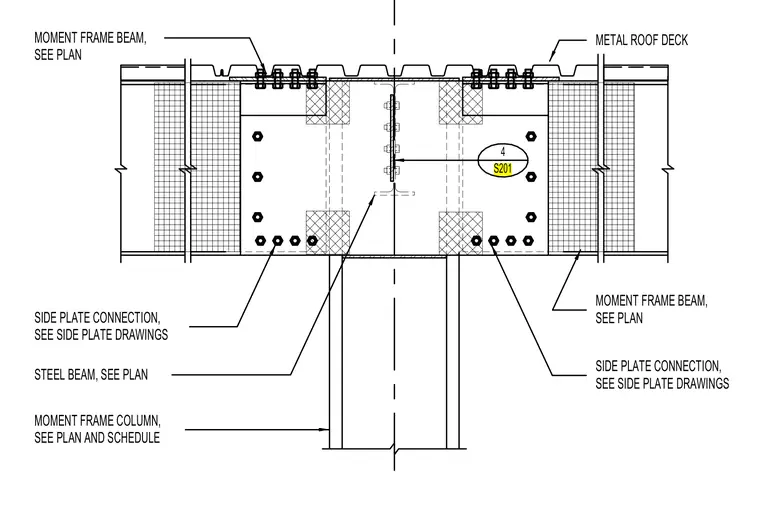

A moment frame beam connects to a moment frame column using proprietary side plate connections detailed on separate drawings. Moment frame beams frame into the column flanges with bolted side plates on both sides of the web and flanges. A steel beam supports the metal roof deck overhead, with member sizes and framing layouts specified per the structural plan and schedule.
MOMENT FRAME COLUMN, SEE PLAN AND SCHEDULE MOMENT FRAME BEAM, SEE PLAN MOMENT FRAME BEAM, SEE PLAN METAL ROOF DECK STEEL BEAM, SEE PLAN SIDE PLATE CONNECTION, SEE SIDE PLATE DRAWINGS SIDE PLATE CONNECTION, SEE SIDE PLATE DRAWINGS 4 S201
