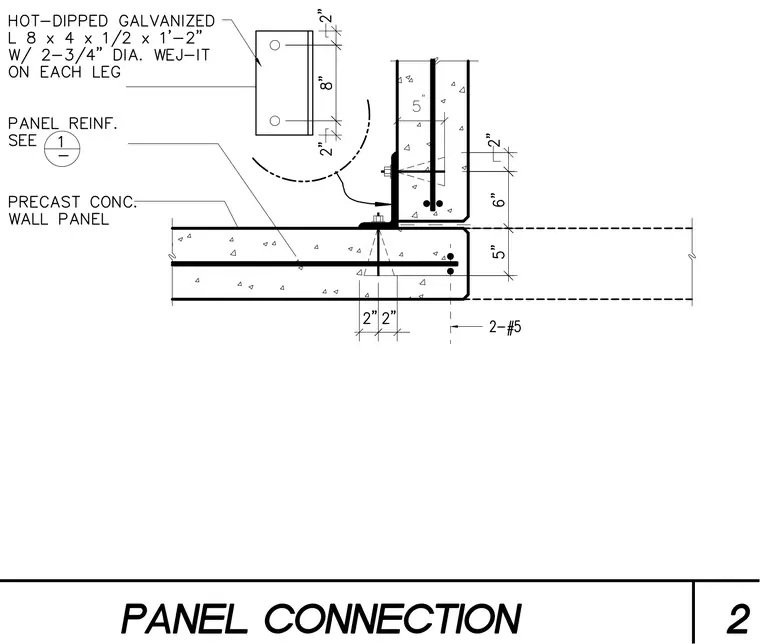

A precast concrete wall panel connects to the supporting structure using a hot-dipped galvanized L 8 x 4 x 1/2 x 1'-2" angle secured with two 3/4-inch diameter Wej-It wedge anchors on each leg. The precast concrete wall panel includes reinforced detailing as specified on sheet 1, with a panel thickness of 5 inches and reinforcing bars including 2-#5. The angle bracket provides structural anchorage across the panel joint with specified edge distances and spacing.
