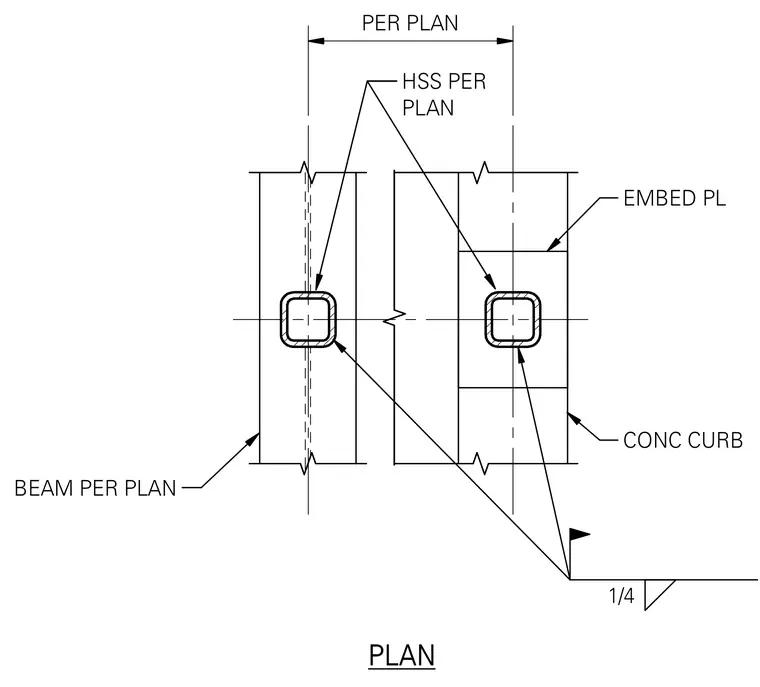

A hollow structural section post is anchored to a concrete curb via an embed plate with a quarter-inch fillet weld as sized per plan. The assembly includes a structural steel beam supporting the connection per plan. Spacing and dimensions are verified per plan.
