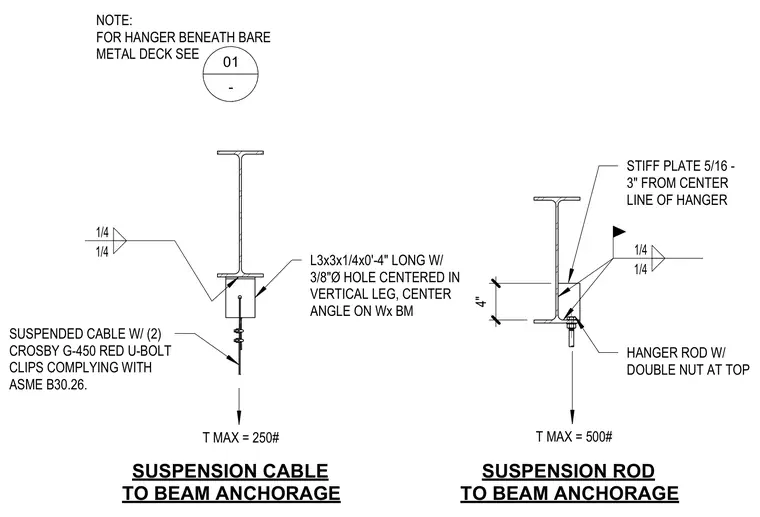

Suspended cable and rod anchorage connections attach to the underside of structural steel wide flange beams using welded angles and stiffener plates. The cable configuration utilizes an L3x3x1/4 angle four inches long with a 3/8-inch diameter hole centered in the vertical leg, centered on the beam flange and welded with 1/4-inch fillet welds. A suspended cable connects using two Crosby G-450 red U-bolt clips complying with ASME B30.26 for a maximum tension of 250 pounds. The rod configuration uses a hanger rod with a double nut at the top and a 5/16-inch thick stiffener plate located three inches from the hanger centerline for a maximum tension of 500 pounds.
SUSPENSION ROD TO BEAM ANCHORAGE STIFF PLATE 5/16 - 3" FROM CENTER LINE OF HANGER HANGER ROD W/ DOUBLE NUT AT TOP 4" 1/4 1/4 NOTE: FOR HANGER BENEATH BARE METAL DECK SEE 01 - L3x3x1/4x0'-4" LONG W/ 3/8"Ø HOLE CENTERED IN VERTICAL LEG, CENTER ANGLE ON Wx BM SUSPENDED CABLE W/ (2) CROSBY G-450 RED U-BOLT CLIPS COMPLYING WITH ASME B30.26. SUSPENSION CABLE TO BEAM ANCHORAGE 1/4 1/4 T MAX = 500# T MAX = 250#
