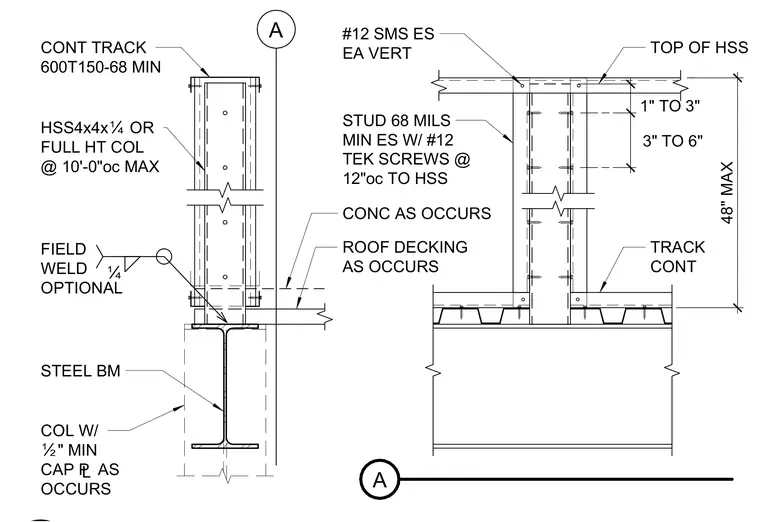

A hollow structural section column or full height column spaces at ten feet on center maximum bearing on a structural steel beam with a one-half inch minimum cap plate as occurs. Cold-formed metal framing studs at sixty-eight mils minimum with number twelve sheet metal screws each side and number twelve Tek screws at twelve inches on center connect to the hollow structural section column. A continuous track section sits at the top of the hollow structural section with optional field welds of quarter-inch size. Roof decking and concrete occur as indicated alongside vertical framing members with a maximum forty-eight inch dimension.
CONT TRACK 600T150-68 MIN HSS4x4xË OR FULL HT COL @ 10'-0"oc MAX STEEL BM ROOF DECKING AS OCCURS STUD 68 MILS MIN ES W/ #12 TEK SCREWS @ 12"oc TO HSS #12 SMS ES EA VERT A A TRACK CONT TOP OF HSS 3" TO 6" 1" TO 3" 48" MAX Ë CONC AS OCCURS FIELD WELD OPTIONAL COL W/ Ï" MIN CAP £ AS OCCURS
