Structural · S-CFZ9D

Roof to Shear Wall Transfer at Gutter

Materials

Elements

Beams Walls Shear Walls Stairs Roofs Decks Drainage

About this detail

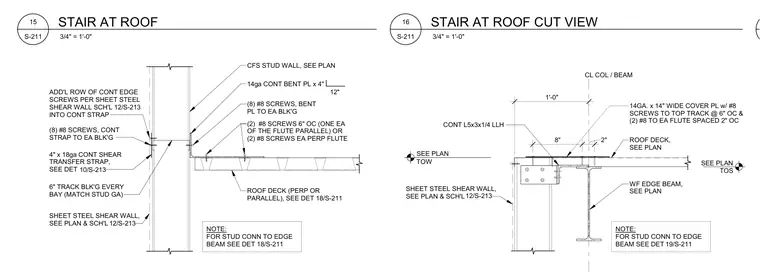

This connection assembly details the roof-to-shear-wall transfer at a stair roof condition using cold-formed steel framing. A fourteen-gauge continuous bent plate measuring four inches by twelve inches is secured to the cold-formed steel stud wall with eight number eight screws. The assembly incorporates a four-inch by eighteen-gauge continuous shear transfer strap fastened to each block with eight number eight screws and attached to blocking in every bay. The roof deck, positioned perpendicular or parallel, ties into the assembly with number eight screws spaced at six inches on center in the parallel flute or two number eight screws in each perpendicular flute. A fourteen-gauge by fourteen-inch wide cover plate attaches to the top track with number eight screws at six inches on center and two number eight screws to each flute spaced at two inches on center. A continuous angle and wide flange edge beam provide primary support aligned with the centerline of the column and beam.
