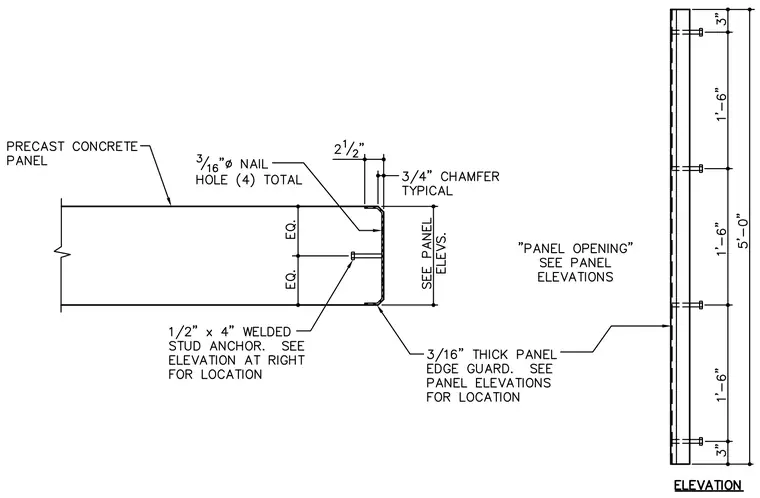

A three-sixteenths-inch-thick steel panel edge guard wraps the corner of a precast concrete panel featuring a three-quarter-inch typical chamfer. The guard is secured with a one-half-inch by four-inch welded stud anchor centered in the thickness of the panel. Four three-sixteenths-inch-diameter nail holes are provided in the web of the edge guard for temporary or auxiliary attachment. An accompanying elevation view details the vertical spacing of the four stud anchors along the height of the five-foot panel.
