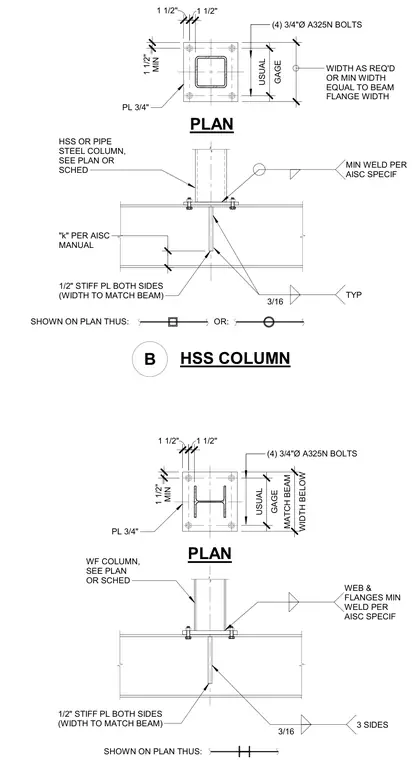

Steel columns bearing on wide flange beams utilize a three-quarter-inch base plate secured with four three-quarter-inch diameter A325N bolts. One-half-inch stiffener plates are welded to both sides of the beam web, sized in width to match the beam and detailed with three-sixteenth-inch fillet welds. The column size and steel section are determined per plan or structural schedule. Minimum edge distances and standard bolt gauges comply with AISC specifications.
SHOWN ON PLAN THUS: 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) WF COLUMN, SEE PLAN OR SCHED PL 3/4" SHOWN ON PLAN THUS: HSS OR PIPE STEEL COLUMN, SEE PLAN OR SCHED 1/2" STIFF PL BOTH SIDES (WIDTH TO MATCH BEAM) "k" PER AISC MANUAL (4) 3/4"Ø A325N BOLTS HSS COLUMN B PLAN PL 3/4" (4) 3/4"Ø A325N BOLTS PLAN MIN 1 1/2" 1 1/2" GAGE USUAL GAGE USUAL WIDTH AS REQ'D OR MIN WIDTH EQUAL TO BEAM FLANGE WIDTH OR: 3/16 3 SIDES 3/16 TYP WEB & FLANGES MIN WELD PER AISC SPECIF MIN WELD PER AISC SPECIF 1 1/2" 1 1/2" MIN 1 1/2" WIDTH BELOW MATCH BEAM 1 1/2"
