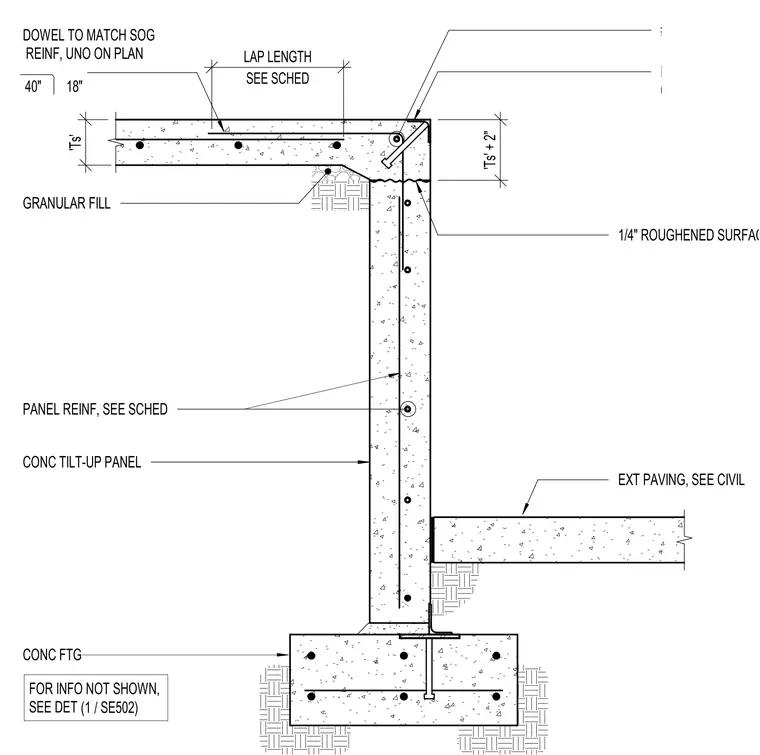

A concrete footing supports the concrete tilt-up panel, which is anchored via a steel embed. The slab-on-grade abuts the interior face of the panel, incorporating a 1/4-inch roughened surface at the joint interface. Reinforcing dowels at the slab-to-panel junction require lap lengths per the structural schedule. Panel reinforcement follows the structural schedule. Exterior paving sits adjacent to the panel base; refer to detail 1 on sheet SE502 for additional information.
