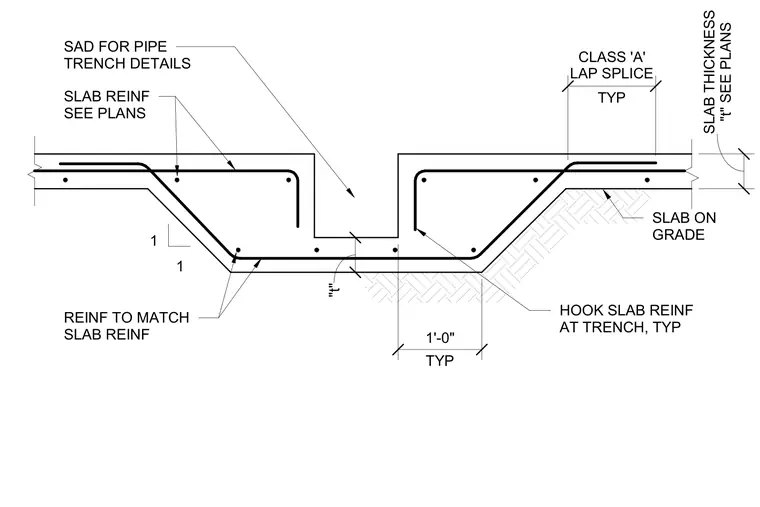

A depressed concrete pipe trench is formed within a slab on grade. The main slab reinforcement continues with a standard one-foot-zero-inch typical Class A lap splice and hooks downward at the trench edge. The trench features sloped sides with a one-to-one slope ratio and reinforcement matching the main slab. Slab thickness and specific reinforcement sizes are sized per plans resting on subgrade.
TYP 1 1 SAD FOR PIPE TRENCH DETAILS SLAB REINF SEE PLANS HOOK SLAB REINF AT TRENCH, TYP SLAB ON GRADE REINF TO MATCH SLAB REINF "t" SEE PLANS SLAB THICKNESS TYP CLASS 'A' LAP SPLICE 1'-0" "t"
