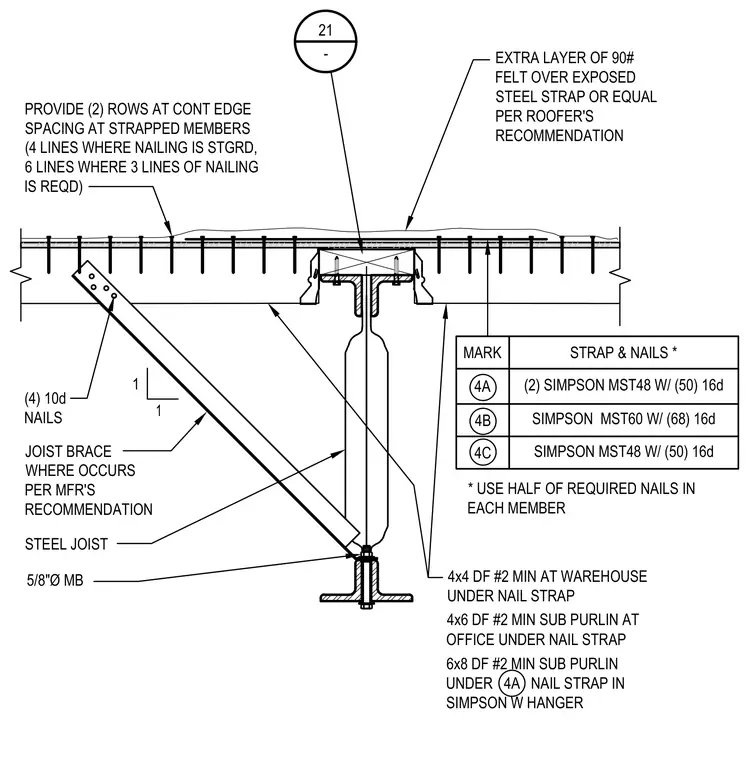

A roof cross tie connection features a steel joist supporting either a four-by-four or four-by-six Douglas Fir number two minimum sub purlin at the warehouse or office under a nail strap. The assembly incorporates a joist brace connected with four ten-penny nails and secured to the steel joist with a five-eighths-inch diameter machine bolt. Simpson strap marks 4A, 4B, and 4C are scheduled with corresponding quantities of sixteen-penny nails, utilizing half of the required nails in each member. An extra layer of ninety-pound felt covers any exposed steel strap per the roofer's recommendation.
4x4 DF #2 MIN AT WAREHOUSE UNDER NAIL STRAP 4x6 DF #2 MIN SUB PURLIN AT OFFICE UNDER NAIL STRAP JOIST BRACE WHERE OCCURS PER MFR'S RECOMMENDATION STEEL JOIST 5/8"Ø MB (4) 10d NAILS EXTRA LAYER OF 90# FELT OVER EXPOSED STEEL STRAP OR EQUAL PER ROOFER'S RECOMMENDATION 1 1 MARK STRAP & NAILS * 4A (2) SIMPSON MST48 W/ (50) 16d 4B SIMPSON MST60 W/ (68) 16d 4C SIMPSON MST48 W/ (50) 16d * USE HALF OF REQUIRED NAILS IN EACH MEMBER PROVIDE (2) ROWS AT CONT EDGE SPACING AT STRAPPED MEMBERS (4 LINES WHERE NAILING IS STGRD, 6 LINES WHERE 3 LINES OF NAILING IS REQD) 21 - 6x8 DF #2 MIN SUB PURLIN UNDER 4A NAIL STRAP IN SIMPSON W HANGER
