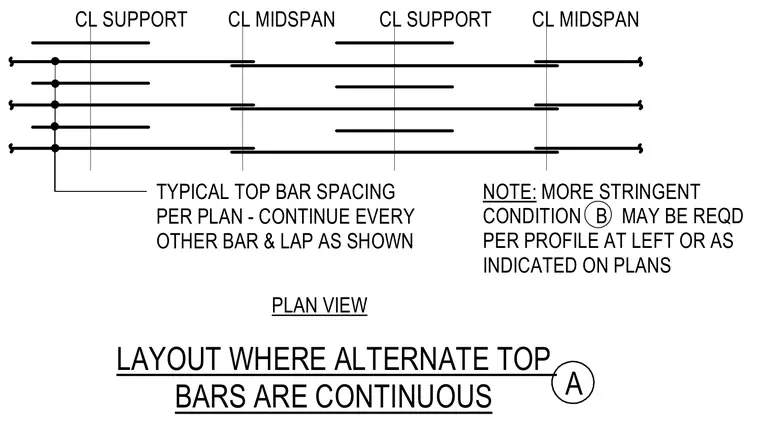

Alternate top bars are continuous across supports and midspans. Typical top bar spacing follows the structural plans, continuing every other bar and lapping as shown. Additional notes specify that more stringent condition B may be required per profile at left or as indicated on structural plans.
CL SUPPORT CL MIDSPAN CL SUPPORT CL MIDSPAN TYPICAL TOP BAR SPACING PER PLAN - CONTINUE EVERY OTHER BAR & LAP AS SHOWN LAYOUT WHERE ALTERNATE TOP BARS ARE CONTINUOUS A PLAN VIEW NOTE: MORE STRINGENT CONDITION B MAY BE REQD PER PROFILE AT LEFT OR AS INDICATED ON PLANS
