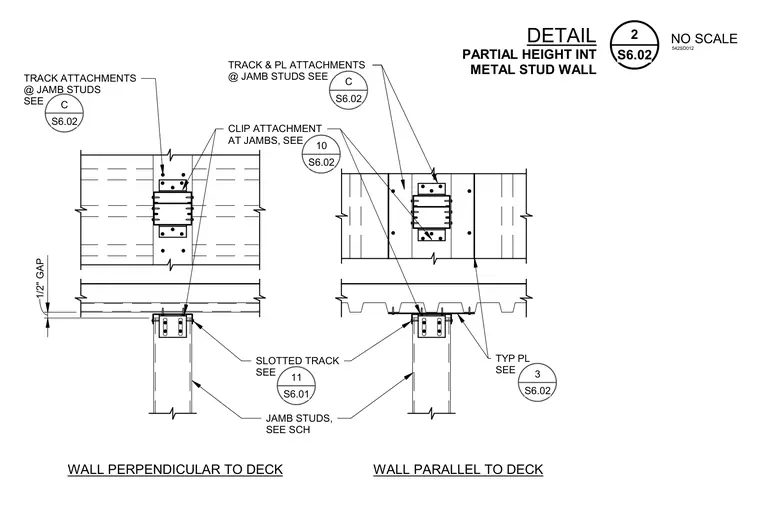

A partial-height interior metal stud wall connects to an overhead metal deck using slotted tracks and jamb studs sized per schedule. A one-half-inch gap is maintained between the track and the deck assembly. Clip attachments and track plates secure the jamb studs to the deck structure. Typical plates and track attachments are detailed for both perpendicular and parallel wall orientations relative to the deck flutes.
SLOTTED TRACK SEE WALL PERPENDICULAR TO DECK TYP PL SEE TRACK ATTACHMENTS @ JAMB STUDS SEE JAMB STUDS, SEE SCH WALL PARALLEL TO DECK CLIP ATTACHMENT AT JAMBS, SEE C S6.02 3 S6.02 10 S6.02 11 S6.01 1/2" GAP TRACK & PL ATTACHMENTS @ JAMB STUDS SEE C S6.02 DETAIL NO SCALE S6.02 2 PARTIAL HEIGHT INT METAL STUD WALL 542SD012
