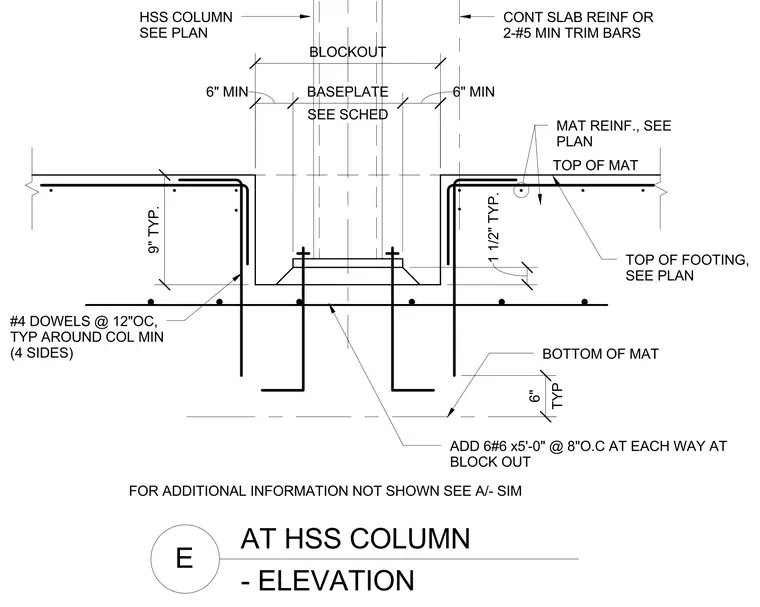

An HSS column base plate is set inside a concrete foundation mat blockout. The assembly features number 4 dowels spaced at twelve inches on center typically around all four sides of the column, along with continuous slab reinforcement or two number 5 minimum trim bars. Additional reinforcement includes six number 6 bars measuring five feet long at eight inches on center each way at the blockout. A six-inch minimum clearance is maintained at the blockout edges, with mat reinforcement detailed per plan.
- ELEVATION AT HSS COLUMN E FOR ADDITIONAL INFORMATION NOT SHOWN SEE A/- SIM #4 DOWELS @ 12"OC, TYP AROUND COL MIN (4 SIDES) BOTTOM OF MAT CONT SLAB REINF OR 2-#5 MIN TRIM BARS TOP OF MAT MAT REINF., SEE PLAN TOP OF FOOTING, SEE PLAN HSS COLUMN SEE PLAN BLOCKOUT TYP 6" 6" MIN SEE SCHED BASEPLATE 6" MIN 9" TYP. ADD 6#6 x5'-0" @ 8"O.C AT EACH WAY AT BLOCK OUT 1 1/2" TYP.
