A concrete slab on grade control joint features a prepared subgrade. A saw-cut measuring one-eighth inch wide by one-quarter of the slab thickness deep forms the control joint. Slab reinforcement and thickness are specified per structural plans. Subgrade preparation is completed according to the geotechnical report.

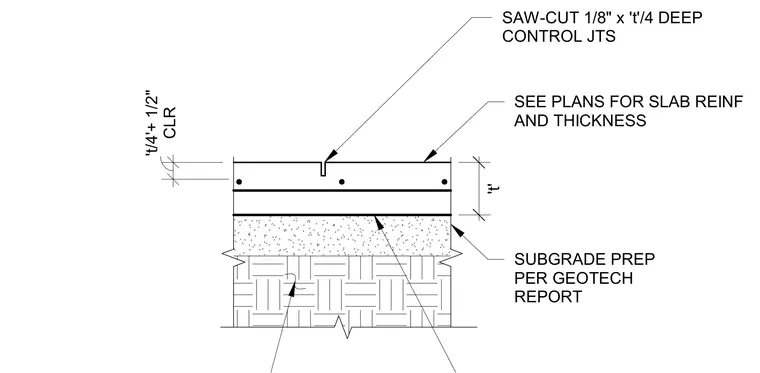

CLR 't/4'+ 1/2" SAW-CUT 1/8" x 't'/4 DEEP CONTROL JTS SEE PLANS FOR SLAB REINF AND THICKNESS SUBGRADE PREP PER GEOTECH REPORT 't'
