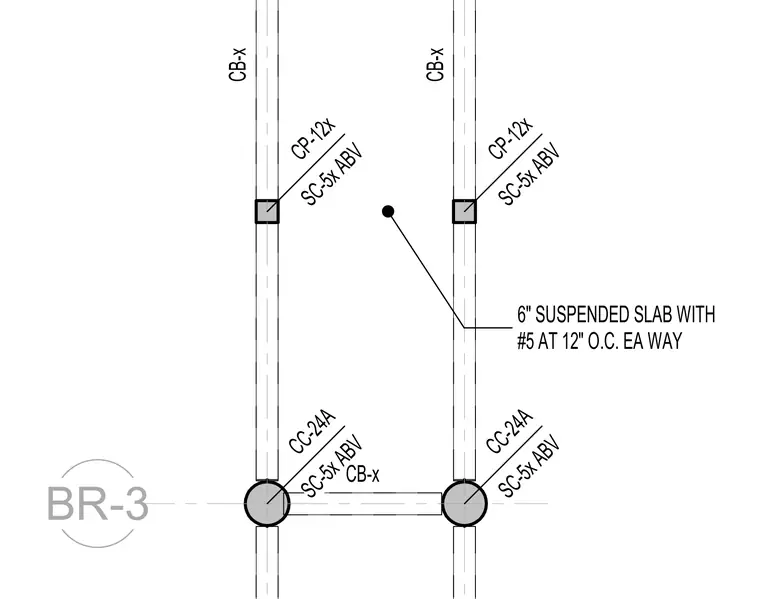

A six-inch thick suspended concrete slab is reinforced with number five reinforcing bars spaced at twelve inches on center in each direction. Structural components include column and beam designations supporting the suspended assembly.
BR-3 SC-5x ABV CC-24A CB-x CB-x SC-5x ABV CC-24A SC-5x ABV CP-12x SC-5x ABV CP-12x CB-x 6" SUSPENDED SLAB WITH #5 AT 12" O.C. EA WAY
