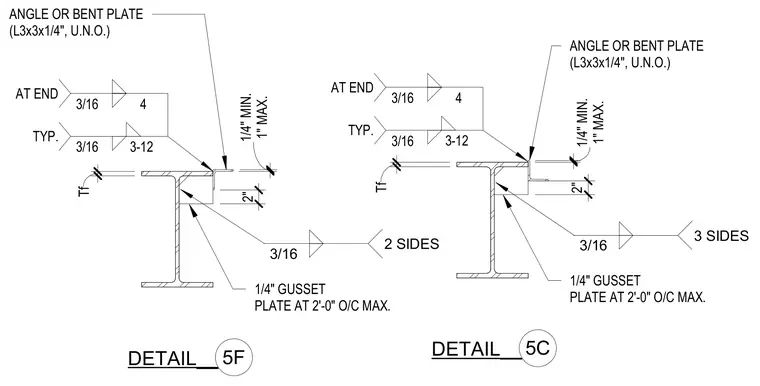

An angle or bent plate measuring three by three by one-quarter inches connects to the top flange of a structural steel beam. A one-quarter-inch gusset plate spaced at a maximum of two feet on center is welded beneath the flange with a three-sixteenths-inch fillet weld on two or three sides. Fillet welds of three-sixteenths inch size are specified with typical spacing of twelve inches on center and four inches at the ends. Clearances maintain a one-quarter-inch minimum to one-inch maximum distance from the flange edge, with a two-inch vertical dimension specified.
1/4" GUSSET PLATE AT 2'-0" O/C MAX. DETAIL__ 5C DETAIL__ 5F ANGLE OR BENT PLATE (L3x3x1/4", U.N.O.) 3-12 TYP. 4 AT END 3-12 TYP. 4 AT END 3/16 3/16 3/16 3/16 ANGLE OR BENT PLATE (L3x3x1/4", U.N.O.) 3/16 3 SIDES 1/4" GUSSET PLATE AT 2'-0" O/C MAX. 3/16 2 SIDES Tf 1" MAX. 1/4" MIN. Tf 2" 1" MAX. 1/4" MIN. 2"
