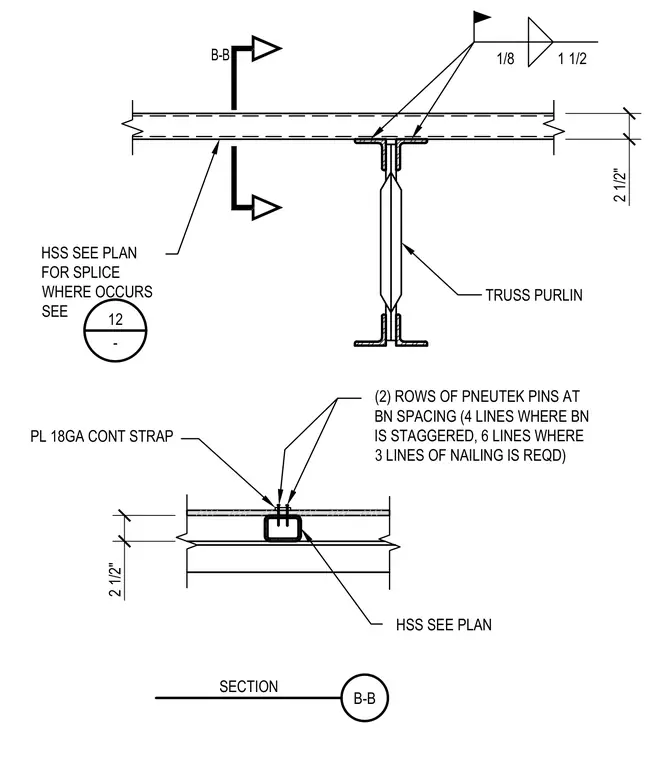

A hollow structural section member connects to a truss purlin with a continuous 18-gauge steel strap secured by two rows of Pneutek pins at beam-nail spacing. Four lines of pins are used where the beam-nail pattern is staggered, and six lines are used where three lines of nailing are required. A 2 1/2-inch dimension separates the structural elements, and a splice location is referenced to the structural plan. A section view labeled B-B indicates the perpendicular orientation of the hollow structural section across the assembly.
2 1/2" TRUSS PURLIN B-B 1/8 1 1/2 HSS SEE PLAN FOR SPLICE WHERE OCCURS SEE 12 - 2 1/2" HSS SEE PLAN PL 18GA CONT STRAP B-B SECTION (2) ROWS OF PNEUTEK PINS AT BN SPACING (4 LINES WHERE BN IS STAGGERED, 6 LINES WHERE 3 LINES OF NAILING IS REQD)
