Structural · S-CEKFR

One-Sided Moment Frame Beam to Column Connection

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

Welded Connection Bolted Connection

About this detail

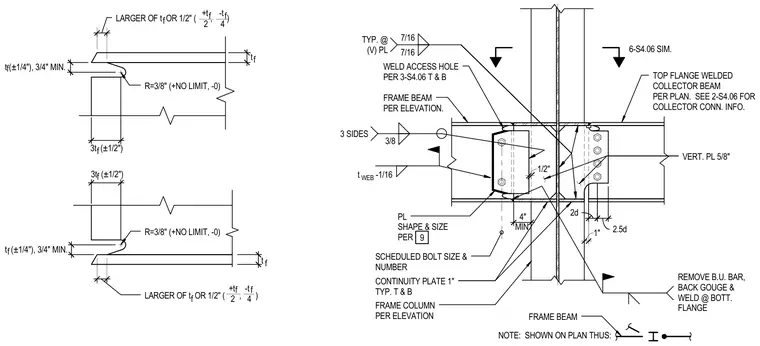

A frame beam connects to a structural steel frame column with a vertical plate and bolted web configuration, supplemented by top and bottom flange welds. Weld access holes are detailed with specific radii and clearances per the structural notes. A one-inch continuity plate is provided at the top and bottom of the connection. The backup bar is removed at the bottom flange, followed by back gouging and welding. Additional collector beam connections and weld sizes are specified per the accompanying structural plans and elevations.
