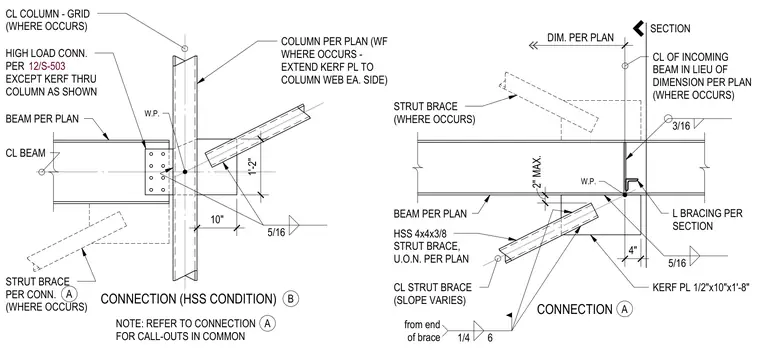

An HSS 4x4x3/8 strut brace connects to a wide-flange column and beam assembly through a one-half inch by ten-inch by one-foot eight-inch kerf plate extending through the column web on each side. The incoming beam frames into the column with a bolted shear tab while the strut brace intersects at a work point defined by dimensions on plan. Fillet welds of five-sixteenth and one-quarter inch sizes secure the brace and plate components according to structural design notes. An angle brace provides additional lateral support per section requirements where indicated.
CONNECTION (HSS CONDITION) CONNECTION W.P. STRUT BRACE (WHERE OCCURS) BEAM PER PLAN HSS 4x4x3/8 STRUT BRACE, U.O.N. PER PLAN KERF PL 1/2"x10"x1'-8" CL COLUMN - GRID (WHERE OCCURS) BEAM PER PLAN COLUMN PER PLAN (WF WHERE OCCURS - EXTEND KERF PL TO COLUMN WEB EA. SIDE) CL OF INCOMING BEAM IN LIEU OF DIMENSION PER PLAN (WHERE OCCURS) DIM. PER PLAN CL STRUT BRACE (SLOPE VARIES) L BRACING PER SECTION NOTE: REFER TO CONNECTION FOR CALL-OUTS IN COMMON HIGH LOAD CONN. PER EXCEPT KERF THRU COLUMN AS SHOWN STRUT BRACE PER CONN. (WHERE OCCURS) CL BEAM SECTION 1/4 6 from end of brace 5/16 3/16 A A B A 5/16 W.P. 4" 2" MAX. 10" 1'-2" 12/S-503
