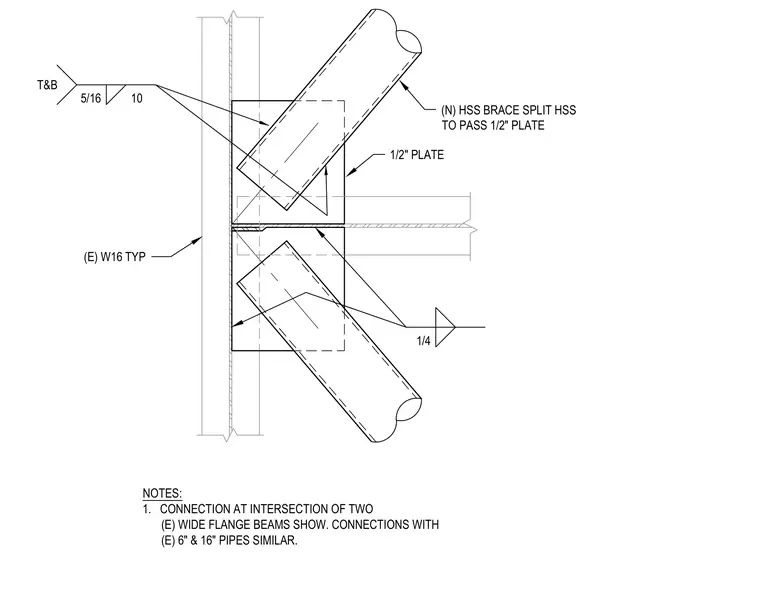

A new hollow structural section brace connects to the intersection of two existing wide flange beams using a split HSS member passing over a half-inch thick steel plate. The connection detail applies to the intersection of two existing wide flange beams with similar configurations for existing six-inch and sixteen-inch pipes. Fillet welds of five-sixteenths and one-quarter inch sizes secure the brace and plate assembly.
NOTES: 1. CONNECTION AT INTERSECTION OF TWO (E) WIDE FLANGE BEAMS SHOW. CONNECTIONS WITH (E) 6" & 16" PIPES SIMILAR. 1/4 5/16 10 T&B (E) W16 TYP (N) HSS BRACE SPLIT HSS TO PASS 1/2" PLATE 1/2" PLATE
