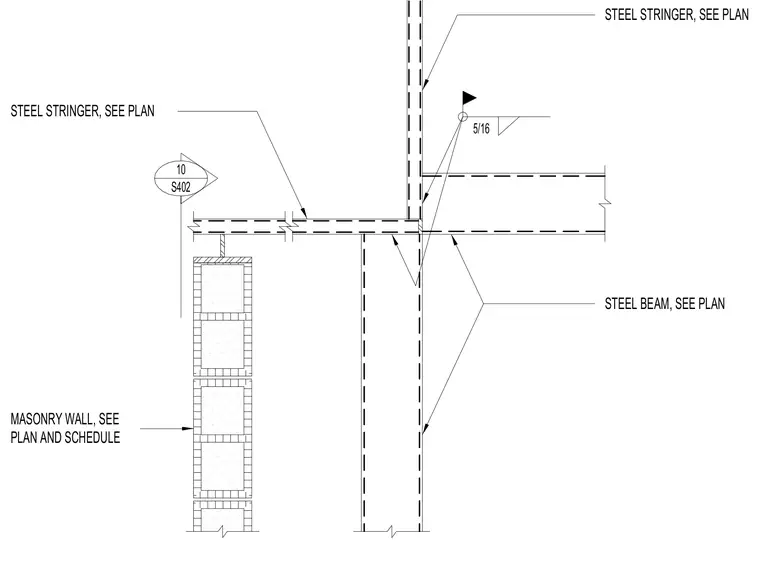

A steel stringer connects to a supporting steel beam and bears on a masonry wall sized per plan and schedule. A five-sixteenth inch fillet weld joins the steel stringer to the supporting steel framing.
STEEL BEAM, SEE PLAN STEEL STRINGER, SEE PLAN 5/16 STEEL STRINGER, SEE PLAN MASONRY WALL, SEE PLAN AND SCHEDULE 10 S402
