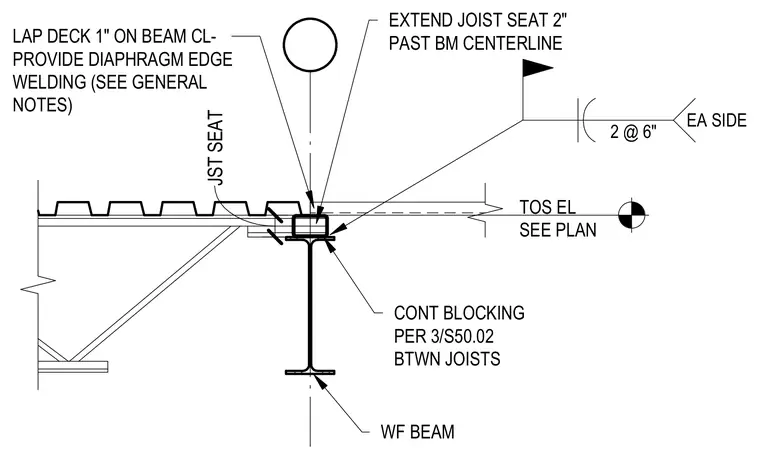

An open-web joist seat bears on a wide-flange steel beam, extending two inches past the beam centerline. Continuous blocking is installed between joists per detail reference. A metal deck laps one inch over the beam centerline with diaphragm edge welding provided on each side.
CONT BLOCKING PER 3/S50.02 BTWN JOISTS LAP DECK 1" ON BEAM CL- PROVIDE DIAPHRAGM EDGE WELDING (SEE GENERAL NOTES) TOS EL SEE PLAN WF BEAM 2 @ 6" EA SIDE JST SEAT EXTEND JOIST SEAT 2" PAST BM CENTERLINE
