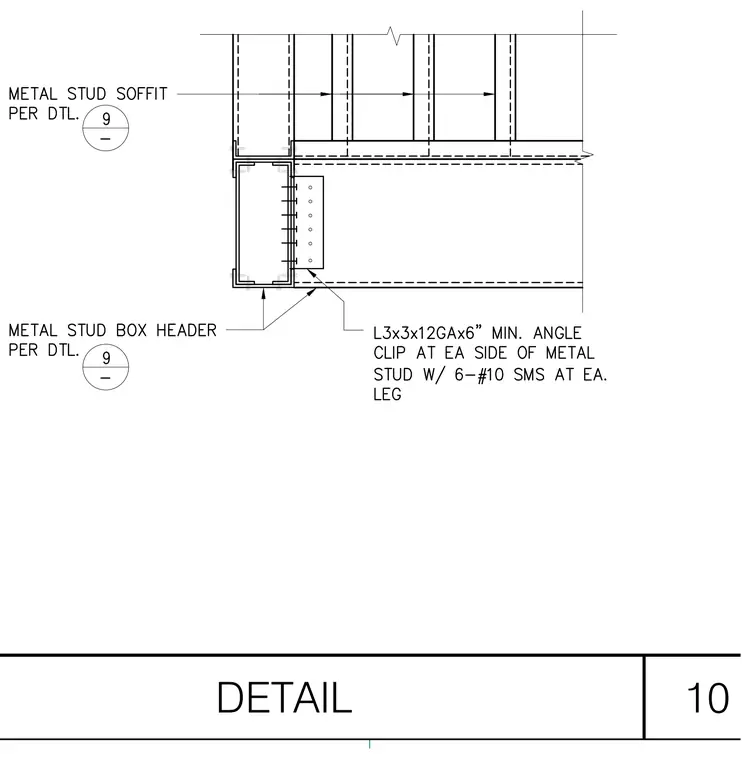

A metal stud soffit framing assembly connects to a vertical framing member using an L3x3x12 gauge minimum angle clip measuring six inches in length. Each leg of the angle clip is secured with six number 10 sheet metal screws. The assembly incorporates a metal stud box header configured per detail nine.
