Structural · S-CE2SM

Steel Beam Roof Deck and Window Framing Connection

Materials

Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Columns Beams Walls Windows Roofs Parapets Decks Arches Connections / Plates

Connections

Welded Connection Deck Attachment

About this detail

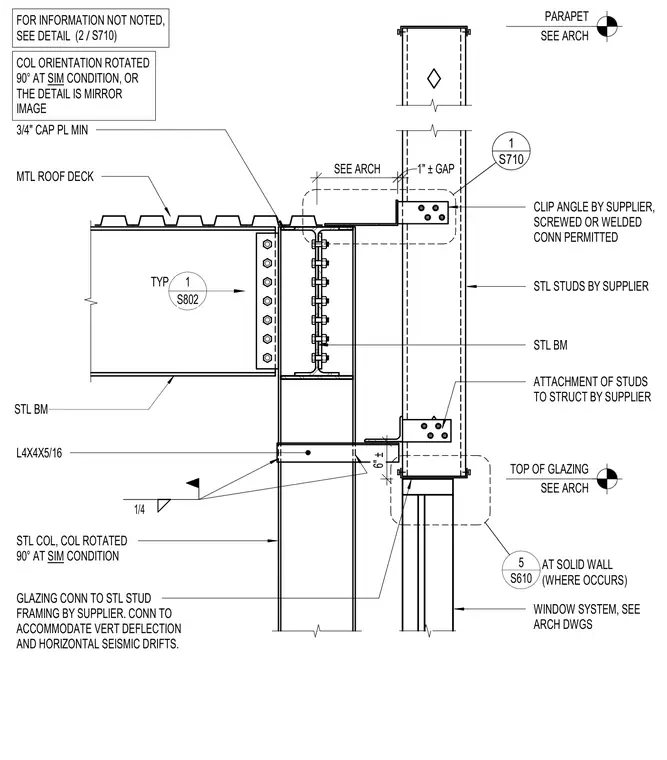

A steel roof beam bears against a steel column with a three-quarter-inch minimum cap plate, supporting a metal roof deck. A clip angle is attached by the supplier to the column web with permitted screwed or welded connections, supporting steel studs for the exterior wall. An L4x4x5/16 angle is welded to the steel column with a quarter-inch fillet weld. A window system connects to the steel stud framing, designed to accommodate vertical deflection and horizontal seismic drifts with a one-inch approximate gap.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
