Typical Slab Edge and Pour Stop Details

Materials

Steel Timber / Wood

Elements

Beams Stairs Floors / Slabs Decks Anchors / Embeds Connections / Plates Reinforcing

Connections

Shear Stud / Composite Rebar Splice / Development

About this detail

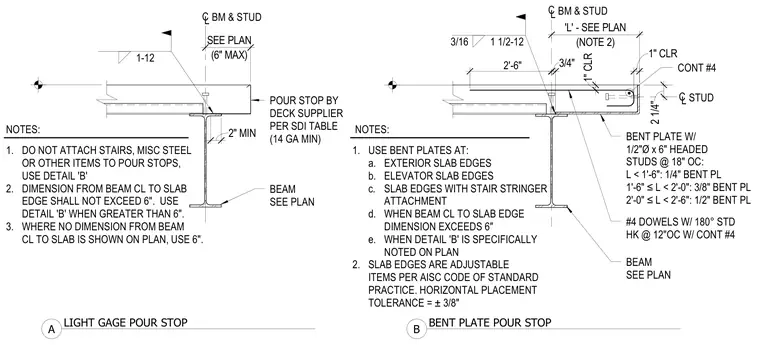

Concrete slab edge conditions are supported by structural steel beams. The first detail shows a standard light gauge pour stop provided by the deck supplier with a minimum fourteen-gauge thickness. The second detail shows an adjustable bent plate pour stop anchored with half-inch diameter by six-inch headed studs at eighteen inches on center, reinforced with continuous number four dowels with one-hundred-eighty-degree standard hooks at twelve inches on center and continuous number four rebar. Bent plates vary in thickness from one-quarter inch to one-half inch depending on the overhang length, and are required at exterior slab edges, elevator slab edges, and locations with stair stringer attachments or when the beam centerline to slab edge dimension exceeds six inches.
